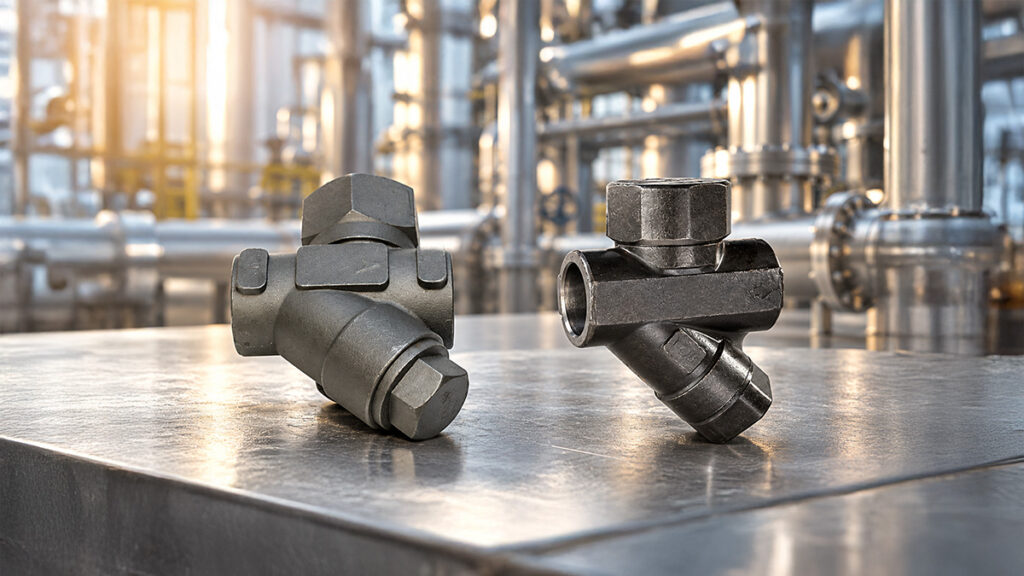

Industrial Steam Trap Selection Guide: Types, Applications & Maintenance in Bahrain

Key Highlights

• Steam is costly to produce, and most Bahraini industrial plants lose it through poorly selected or poorly maintained steam traps.
• A steam trap has three jobs: remove condensate immediately, hold back live steam, and vent air and carbon dioxide during startup.
• The three main steam trap families are mechanical (based on liquid density), thermodynamic (based on velocity and pressure), and thermostatic (based on temperature).
• Trap selection should depend on operating pressure, actual condensate volume, and Bahrain’s dusty, corrosive, and humid conditions.
• Sector matching matters: bimetallic traps for heavy fuel and asphalt lines in refineries, inverted bucket traps for dusty aluminium plants, large float traps for desalination, stainless steel F&T traps with anti-vacuum breakers for food and laundries, and stainless steel thermodynamic disc traps for marine use.
• Ultrasonic testing is the most reliable field method for spotting failed-open or plugged traps.
• Dual-point infrared checks (six inches before and after the trap) reveal failures: hot on both sides means live steam is blowing through, cold on both sides means the trap is clogged.
• Regular inspection is essential in Bahrain’s harsh climate to prevent energy waste and equipment damage.
• Al Fateh Industrial Supplies offers a wide range of industrial components and steam trap solutions for sectors including petrochemicals, marine, and oil and gas.

Steam is expensive to produce. You feed treated water into a boiler, burn natural gas or heavy diesel to vaporize it, and pump it through kilometers of pipe to perform. Yet in almost every plant across Bahrain, steam is wasted. Why? Because steam traps are not effectively installed. In fact, nobody thinks about steam traps until a product batch comes out half-cooked, a boiler runs out of capacity, or loud hammering sound is heard in the pipeline.

Finding the right steam trap in Bahrain isn’t about browsing a catalog and ordering whatever matches your pipe threads. It involves looking at your operating pressures, real condensate volumes, and the corrosive, dust-heavy conditions unique to Bahrain.

Here is a practical guide on how industrial steam traps in Bahrain work, which design belongs on your equipment, and how to keep them running reliably year-round.

What Does an Industrial Steam Trap Actually Do?

Every steam trap on your line has to handle three jobs:

• Eliminate condensate the moment it forms. Condensate is spent steam that has given up its heat. If that liquid water pools inside a heat exchanger, it forms an insulating blanket over the metal. If you don’t drain it, your process slows down considerably.
• Hold live steam back. Steam is pure thermal energy. The trap has to seal tight against live vapor so your boiler isn’t burning fuel just to heat the open sky or overload your condensate return tank.
• Remove air and carbon dioxide during startup: Cold steam pipes contain air. When the system starts, the steam trap lets this air out so steam can flow freely. It also removes carbon dioxide, which can cause rust and damage inside the pipes.

However, no single mechanism can tackle all three tasks across every plant setup, so engineers rely on three main trap families:

The Three Core Steam Trap Families

Mechanical Traps: Working on Liquid Density

Mechanical traps are oblivious about temperature or flow speed. They open and close strictly based on whether liquid water or vapor is sitting inside the body. Float and thermostatic traps and inverted bucket traps are types of mechanical traps.

Thermodynamic Traps: Working on Velocity and Pressure

Thermodynamic traps operate on pure fluid mechanics. It removes live condensate and air from a steam system while preserving the steam inside. Thermodynamic traps use free floating steel discs that act as the valve. Cool water and air pushes the disc upward, ensuring free flow of the condensate and air. On the other hand hot condensate creates steam that lowers the pressure under the disc. At the same time high pressure is created above the disc, closing the valve shut. When the trapped steam condensates, the disc lifts and releases the condensate.

Thermostatic Traps: Working on Temperature Differences

These traps tell steam and condensate apart by their temperature. They contain temperature sensitive material like bimetallic strip or liquid in a capsule that reacts to heat. When cooler air or liquid touches the element it contracts, opens the valve and lets the condensate pass through. When hot air or condensate touches the element, it expands and shuts the valves, stopping the steam form escaping.

Matching Traps to Bahrain’s Industrial Sectors

An industrial steam trap in Bahrain that works flawlessly inside an air-conditioned food plant will fail within weeks if installed outdoors in an oil facility. Therefore, it is important to match the trap to the industrial sector.

Oil Refining and Petrochemicals

Refineries use steam at different pressures and temperatures, so the steam trap must match the application. For example, heavy fuel and asphalt lines can benefit from bimetallic traps, which remove condensate while helping retain heat in the system.

Aluminium Smelting and Downstream Plants

Aluminium plants deal with dust and fine particles from alumina and carbon. Inverted bucket steam traps in Bahrain can work well in these areas because dirt and debris can settle at the bottom of the trap instead of blocking the working parts. This makes them suitable for applications where dust and particles are common.

Power Generation and Desalination

Seawater desalination evaporators generate staggering amounts of condensate while running on low-pressure steam.
These plants rely on large lever-operated mechanical float traps capable of moving tens of tons of liquid per hour back to the feed tanks.

Food, Beverage, and Commercial Laundries

These industries run best on stainless steel F&T traps. Always install an anti-vacuum breaker alongside them. When steam shuts off, condensing vapor creates a vacuum that can pull dirty wash-water back into clean equipment.

Marine and Offshore

Shipboard steam systems, and bunker barges face constant vibration and salty offshore winds.

Stainless steel thermodynamic disc traps with built-in strainers and weather caps survive these harsh marine elements while cast iron can rust out in months.

Maintenance & Testing of Industrial Steam Traps in Bahrain’s Harsh Climate

High summer ambient heat, driving desert dust, and marine humidity turn neglected steam systems into expensive pits. A simple, structured inspection route keeps your plant running clean.

Ultrasonic Testing (The Most Reliable Field Method)

An ultrasonic testing gun picks up high-frequency friction noise inside the metal body, filtering out noisy background plant hum:

• A healthy disc trap gives a clean, rhythmic pattern: a rushing hiss for a few seconds, then dead silence while the disc holds tight.
• A failed-open trap sounds will make violent sounds.
• A plugged trap stays dead silent and cold to the touch.

Dual-Point Infrared Temperature Checks

Use an infrared temperature gun to read the pipe surface six inches before the trap and six inches after it.

A working trap shows an obvious temperature drop matching the pressure drop between headers.

• If the pipe is hot on both sides of the trap, high-pressure live steam is blowing straight through into the return line.
• If both sides are cold, the trap is choked with scale, and your process line is waterlogged.

Al Fateh Industrial Supplies Bahrain: Reliable Solutions for Control Systems and Piping Accessories

Al Fateh Industrial Supplies is a leading importer and distributor of trusted products and supplies for the industrial sector. From petrochemicals and marine sector to sanitary and oil and gas industries, we provide a comprehensive range of industrial supplies to meet their unique requirements and demands. For an exclusive range of high quality industrial components, contact Al Fateh Industrial Supplies in Bahrain.

Frequently Asked Questions

What is the practical difference between a Thermodynamic and an F&T steam trap?

A Thermodynamic (disc) trap uses flash steam velocity to snap a flat disc open and shut intermittently. A F&T trap uses a buoyant ball float to drain water continuously without sub-cooling.

What are the main types of steam traps?

There are three main types of steam traps: mechanical traps (float and thermostatic, inverted bucket), which work on liquid density; thermodynamic traps, which work on velocity and pressure; and thermostatic traps, which respond to temperature differences.

Which steam trap in Bahrain works best in dusty environments like aluminium smelting plants?

Inverted bucket traps are a good fit for dusty industrial environments because dirt and debris settle at the bottom of the trap instead of blocking the working parts.

What type of industrial steam trap in Bahrain is suitable for marine and offshore use?

Stainless steel thermodynamic disc traps with built-in strainers and weather caps handle vibration, salty winds, and humidity better than cast iron, which can rust out within months.

How can I test whether a steam trap is working properly?

Use an ultrasonic testing gun to listen to the trap’s internal sounds, and an infrared temperature gun to compare pipe temperatures about six inches before and after the trap. A healthy trap shows a clear temperature drop across it.
