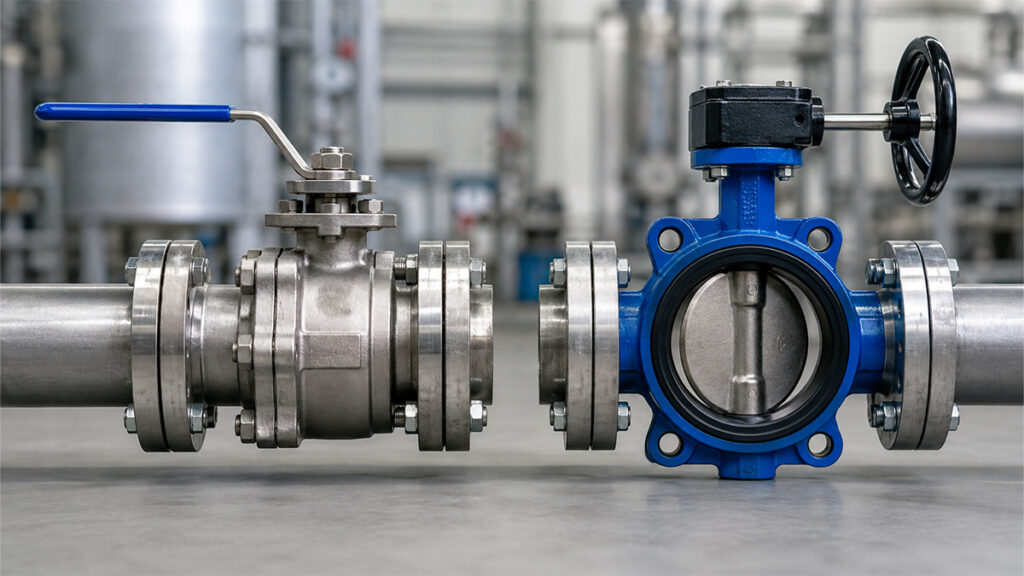

Ball Valve vs Butterfly Valve: Which Valve Is Best for Industrial Use?
Key Highlights
- Ball and butterfly valves in Bahrain serve different industrial requirements based on pressure, temperature, flow control, and installation space.
- Butterfly valves are lightweight and space-efficient, making them suitable for large-diameter pipelines and applications such as water treatment and HVAC systems.
- Ball valves provide reliable shut-off, making them suitable for high-pressure applications and oil and gas pipelines.
Both valves use a 90° quarter-turn mechanism, allowing quick and efficient opening and closing. - Choosing between a ball valve and butterfly valve depends on factors such as pipeline size, pressure rating, flow requirements, shut-off performance, and budget.
- Al Fateh Industrial Suppliers provides a range of ball valves and butterfly valves in Bahrain for diverse commercial and industrial applications.
Both ball and butterfly valves in Bahrain have unique specifications and serve different requirements in industrial operations. Neither valve is universally better. Ball valves are generally preferred when tight shut-off and low pressure loss are priorities, while butterfly valves are often preferred for large-diameter pipelines where lower weight, compact installation, and cost efficiency matter. Understanding their unique features and specific applications can give you a clear idea of when to invest in a butterfly or ball valve in Bahrain.
What is a Butterfly Valve?
A butterfly valve gets its name from its unique butterfly appearance and movement. It consists of a flat internal disc mounted in the centre of a shaft that rotates like a pair of butterfly wings. The wing-like structure rotates to open, block, or regulate the flow of fluid in the pipe’s passageway. Mainly used for pipes with a large diameter, but butterfly valves are also used for smaller diameter pipes. Typically, these pipes can handle large volumes of fluid with minimal pressure drop.
What is a Ball Valve?
A ball valve consists of a ball or sphere that sits inside a valve. The ball has a straight hole or bore cut through its middle or core. When you turn the valve handle, the sphere area aligns with the valve, allowing the pipe contents to flow through the hole. For a closed position, the valve handle is turned 90°, allowing the solid edges of the ball to block the flow of fluids.
Similarities and Differences Between Butterfly and Ball Valves in Bahrain
Understanding the similarities and differences between ball and butterfly valves in Bahrain is crucial to recognizing their specific industrial applications.
How Are Butterfly Valves and Ball Valves Similar?
These valves are widely used across multiple industries, including oil and gas refineries and for domestic purposes.
Mechanism
One of the similarities is the way they operate. Both valves function with a quarter-turn rotation mechanism, requiring a 90° turn to open or close.
Cost
Butterfly valves are generally more economical for larger pipeline diameters because they require less material and are lighter. Ball valves can become more expensive as size and pressure rating increase. At Al Fateh Industrial suppliers in Bahrain, we offer a wide range of valves, including butterfly and ball valves to meet the requirements of multiple industries.
Maintenance
Ball and butterfly valves in Bahrain are easy to maintain. However maintenance requirements depend on the valve design, seat, actuator, fluid, pressure, temperature and operating conditions.
Applications
These valves are used across several applications, including domestic, commercial, and industrial use.
Durability
Typically, the butterfly and ball valves have a high life expectancy. Valve lifespan still depends on design, material, temperature, cycling frequency, installation and maintenance.
Differences Between Ball Valves and Butterfly Valves
Although similar in certain aspects, these valves also exhibit differences.
Installation Space
While butterfly valves can be fitted in pipes with only a narrow space between the ends, ball valves require more space between pipe ends.
Weight
Butterfly valves are lightweight when you compare them to ball valves even for large pipe diameters. Ball valves fitted for large diameter pipes may also require additional support.
Control of Fluid Flow
Butterfly valves can be used for throttling, depending on their design and application. Ball valves are generally better suited to isolation than continuous throttling, particularly standard full port ball valves.
Flow and Pressure Drop
Butterfly valves can create pressure drops, whereas ball valves have low pressure drop.
Shut-Off capability
Butterfly valves provide excellent shut-off for fluids and low pressure. Ball valves have more dependable shut-off mechanism for high- and low-pressure fluids. However, there are butterfly valves specially designed for high pressure applications.
Brief Overview
Feature |
Ball Valve |
Butterfly Valve |
|---|---|---|
| Operation | Quarter-turn | Quarter-turn |
| Weight | Generally heavier | Lightweight |
| Installation space | Requires more space | Compact |
| Large diameter pipelines | Less economical at very large sizes | Well suited |
| Shutoff | Excellent | Good to excellent depending on design |
| Pressure loss | Generally low, especially full-port designs | Some pressure loss due to disc |
| Throttling | Generally not preferred for continuous throttling | Can be used depending on design |
| Cost | Can be higher at larger sizes | Generally economical for large sizes |
| Common uses | Oil & gas, chemical, process systems | Water treatment, HVAC, utilities |
Ball Valve vs Butterfly Valve: Common Applications
Ball Valves are typically used for:
- Chemical plants
- Oil and gas lines
- Leak-proof systems
- Systems requiring frequent on and off mechanisms
Butterfly valves are typically used for:
- Water treatment pipes
- HVAC systems
- Low-pressure utility lines
Where Can You Find Butterfly and Ball Valves in Bahrain?
Al Fateh Industrial Suppliers offer a comprehensive range of ball and butterfly valves in Bahrain. Our commitment to quality ensures we only offer reliable, durable, and high-performance valves from trusted manufacturers to meet diverse industrial requirements. For high-quality valves in Bahrain, contact Al Fateh Industrial Suppliers in Bahrain today.
Frequently Asked Questions
Which is better, a ball valve or butterfly valve?
The better option depends on factors such as flow requirements, pressure, temperature, and installation space.
Are butterfly valves more affordable than ball valves?
Butterfly valves can be more cost-effective, particularly for larger pipeline sizes.
Are ball valves suitable for high-pressure applications?
Yes, ball valves generally suit high-pressure applications.
